Cold work tool steel
ALTA SKD11 Tool Steel Specification
Steel properties
ALTA SKD11 tool steel is a general-purpose cold work tool steel with high wear resistance (C%1.40~1.60, Cr%11.0~13.0), combined with better toughness performance than tool steel 1.2379, D2, 1.2080, D3 materials. This SKD11 steel has good hardenability and small deformation during quenching.
After spheroidizing annealing treatment, ALTA SKD11 tool steel would obtain a good machinability, and the carbide particles are small and uniform, good toughness and not easy to be cracked.
Applications
² High efficiency blanking dies, punch dies, coining dies for thin plates thickness <= 6mm
² Various kinds of scissors, inlay blades, woodworking blades, shear blades, industrial cutting knives
² Slider-resistant cold heading dies, cold forging dies, deep drawing dies, cold extrusion dies
² Forming rolls
² Thermosetting resin molds, general plastic molds
Chemical composition
Chemical Composition per %
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
V |
Ni |
Cu |
Min. |
1.40 |
0.10 |
0.15 |
|
|
11.0 |
0.80 |
0.20 |
|
|
Max. |
1.60 |
0.40 |
0.60 |
0.030 |
0.020 |
13.0 |
1.20 |
0.50 |
0.25 |
0.25 |
Basic melting process : |
IM/EAF + LF + VD + (ESR) |
Hardness : |
Max 250 HB (annealed) |
Reduction ratio : |
5 : 1 minimum or required |
Grain size : |
≥ 6.0 per ASTM E112 |
Non-metallic inclusion : |
≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route) |
Ultrasonic Test |
SEP1921, EN 10308, ASTM A388 or agreed methods |
Macro-structure |
As per ASTM E381 |
Straightness / flatness |
≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black) |
Tolerance |
Per discussed |
Size range (round bars) |
Ø 12 - 650 mm |
Size range (flats, plates) |
8 - 400 mm in thickness max. 1100 mm in width |
** Available in stock of round bars, flat bars, sheets and plates
Heat treatment
Annealing |
Temperature(°C) |
Hardness |
830 - 880 |
max. 250 HB |
Hot-forming |
Temperature(°C) |
900 - 1100 |

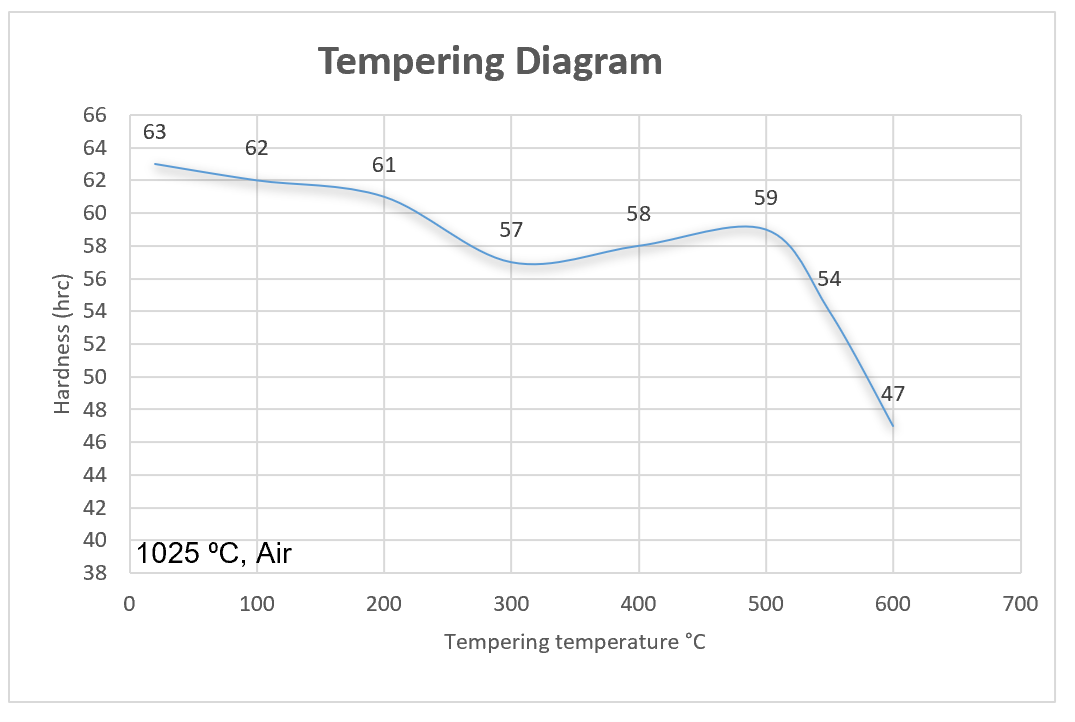

Hardening and tempering |
Quenching temperature(°C) |
Quenching medium |
Frequently-used tempering temperature(°C) |
1000 - 1050 (*) |
Air or Oil |
150 - 200 |
** Preheat to 700-750°C, then heat to 1000-1050°C and cool in still air. If the steel thickness is more than 200mm, it is better to heat to 980-1030°C and quenched in oil.
Ac1 | Accm | Ar1 | Arcm | Ms |
830 | 855 | 750 | 780 | 230 |
Downloads
-
2024-09-19 Alta SKD11 SPEC (011 - S6 - T1 ).pdf
끂28 276.5 KB
Features
² High wear resistance (can be used as a punching die for stainless steel and high hardness materials)
² Good hardenability, air-cooled hardening (not prone to quenching cracks)
² Good toughness
² Good machinability
Coefficient of thermal conductivity : λ W/(m·K)
Temperature °C | 25 | 100 | 200 | 300 | 400 | 500 | 600 |
λ | 16.9 | 19.7 | 21.1 | 22.5 | 24.0 | 25.2 | 28.2 |
Coefficient of linear expansion : α(mm/(mm·°C))
Temperature °C | 20~100 | 20~200 | 20~300 | 20~400 | 20~500 | 20~600 |
Αx 10-6 | 10.60 | 11.90 | 11.80 | 12.0 | 12.2 | 12.2 |
SKD11 steel heat treatment for reference :
Quenching + tempering | normal usage |
Quenching + cold treatment + tempering | suitable for high precision and dimensional stability requirements |
Quenching + tempering + nitriding | suitable for high surface hardness requirements |
