Martensitic Stainless Steel
ALTA 1.2787 Stainless Steel Specification
Steel properties
ALTA 1.2787 stainless steel has a high content of chrome that gives good resistance to the formation of scales and corrosion. It has good corrosion resistance to oxidizing acids, most organic acids and aqueous solutions of organic salts.
Its ESR quality is very suitable for glass moulds.
Applications
² Molds for pressing of glass for the industrial glass with high requirements for the glass quality, also for highly meltable, technical, tempered glass
² Manufacturing of pressing die moulds, blowing moulds and section rolls
Chemical composition
Chemical Composition per %
|
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Cu |
Min. |
0.10 |
|
|
|
|
15.50 |
1.00 |
|
Max. |
0.25 |
1.00 |
1.00 |
0.030 |
0.030 |
18.00 |
2.50 |
0.25 |
Basic melting process : |
IM/EAF + LF + VD + (ESR) |
Hardness : |
Max 245 HB (annealed) |
Reduction ratio : |
5 : 1 minimum or required |
Grain size : |
≥ 5.0 per ASTM E112 |
Non-metallic inclusion : |
≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route) |
Ultrasonic Test |
SEP1921, EN 10308, ASTM A388 or agreed methods |
Macro-structure |
As per ASTM E381 |
Straightness / flatness |
≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black) |
Tolerance |
Per discussed |
Size range (round bars) |
Ø 12 - 500 mm |
Size range (flats, plates) |
30 - 400 mm in thickness max. 1100 mm in width |
Heat treatment
Annealing |
Temperature(°C) |
Hardness |
670 - 750 |
max. 245 HB |
Hot-forming |
Temperature(°C) |
800 - 1100 |

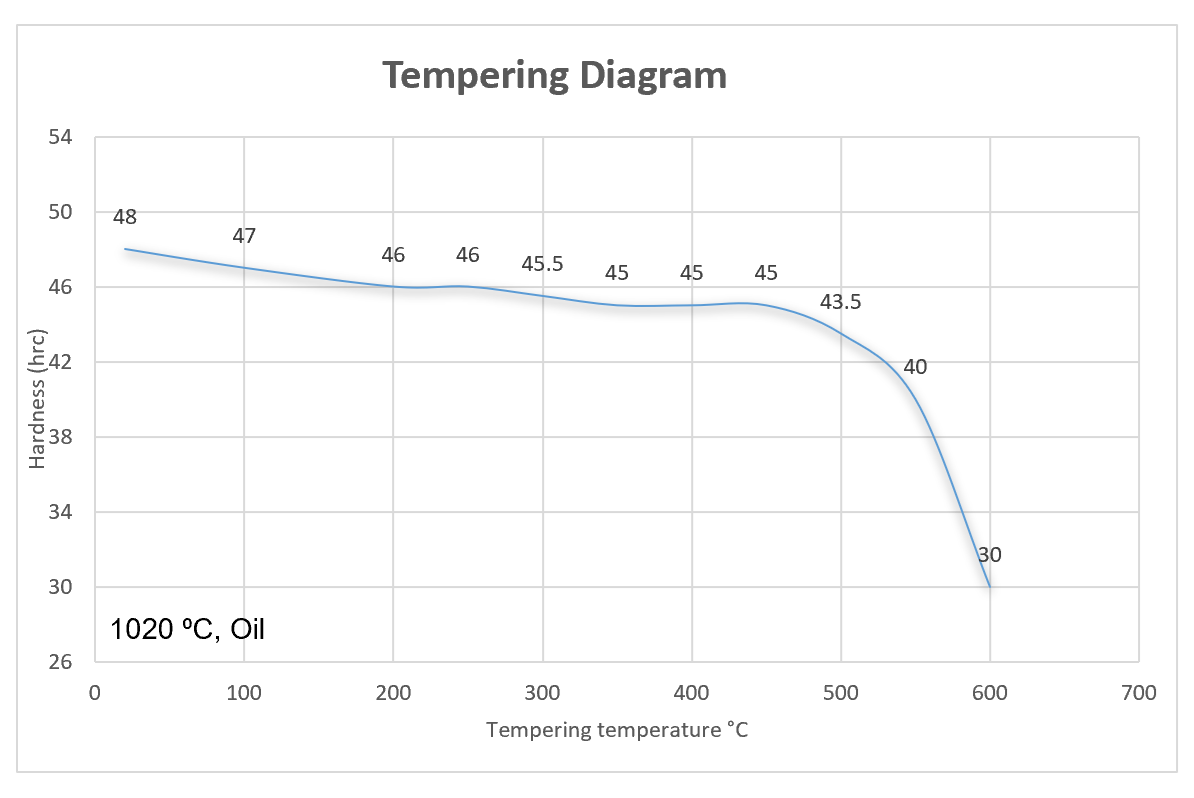

Hardening and tempering |
Quenching temperature(°C) |
Quenching medium |
Frequently-used tempering temperature(°C) |
980 - 1030 |
Oil |
450 - 600 |
Ac1 | Ac3 | Ms |
735 | 830 | 150 |
Coefficient of thermal conductivity : λ W/(m·K)
Temperature °C | 20 |
λ | 25 |
Coefficient of linear expansion : α(mm/(mm·°C))
Temperature °C | 20~100 | 20~200 | 20~300 | 20~400 | 20~500 |
Αx 10-6 | 10.10 | 10.50 | 11.20 | 11.10 | 11.20 |
Downloads
-
2024-09-29 Alta 1.2787 SPEC (011 - S6 - T1 ).pdf
끂0 268.5 KB
Features
² High corrosion resistance
² High strength and toughness
² Good wear resistance
² Good machinability and polishability
