Cold work tool steel

ALTA 1.2550 / S1 Steel Specification

Steel properties

ALTA 1.2550 steel is a shock resisting cold work steel that have high toughness and ductility, high impact-resistant, good machinability and polishability. The W% of this steel confers fatigue resistance, the Cr% of this steel provides good depth of hardness and resistance to abrasion.

It's also suitable for hot work applications where high fatigue strength with medium hot hardness is desirable.

Applications

² Cutting tools, shear blades, industrial cutting knives, chipper knives

² Impact resistant mold, Casting finishing tools

² Blanking dies for thin sheet, trimming tools, slitting cutters

² Hot work tools, such as punches for producing screws and hot riveting

² Hot forging dies for high-temperature die-casting light alloy

Chemical composition

Chemical Composition per %

	C	Si	Mn	P	S	Cr	W	V	Ni	Cu
Min.	0.55	0.70	0.15			0.90	1.70	0.10
Max.	0.65	1.00	0.45	0.030	0.030	1.20	2.20	0.20	0.25	0.30

Basic melting process :

IM/EAF + LF + VD + (ESR)

Hardness :	Max 230 HB (annealed)
Reduction ratio :	5 : 1 minimum or required
Grain size :	≥ 6.0 per ASTM E112
Non-metallic inclusion :	≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route)
Ultrasonic Test	SEP1921, EN 10308, ASTM A388 or agreed methods
Macro-structure	As per ASTM E381
Straightness / flatness	≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black)
Tolerance	Per discussed
Size range (round bars)	Ø 12 - 500 mm
Size range (flats, plates)	12 - 500 mm in thickness max. 1100 mm in width

Heat treatment

Annealing	Temperature(°C)	Hardness
Annealing	720 - 750	max. 230 HB

Hot-forming	Temperature(°C)
	850 - 1050

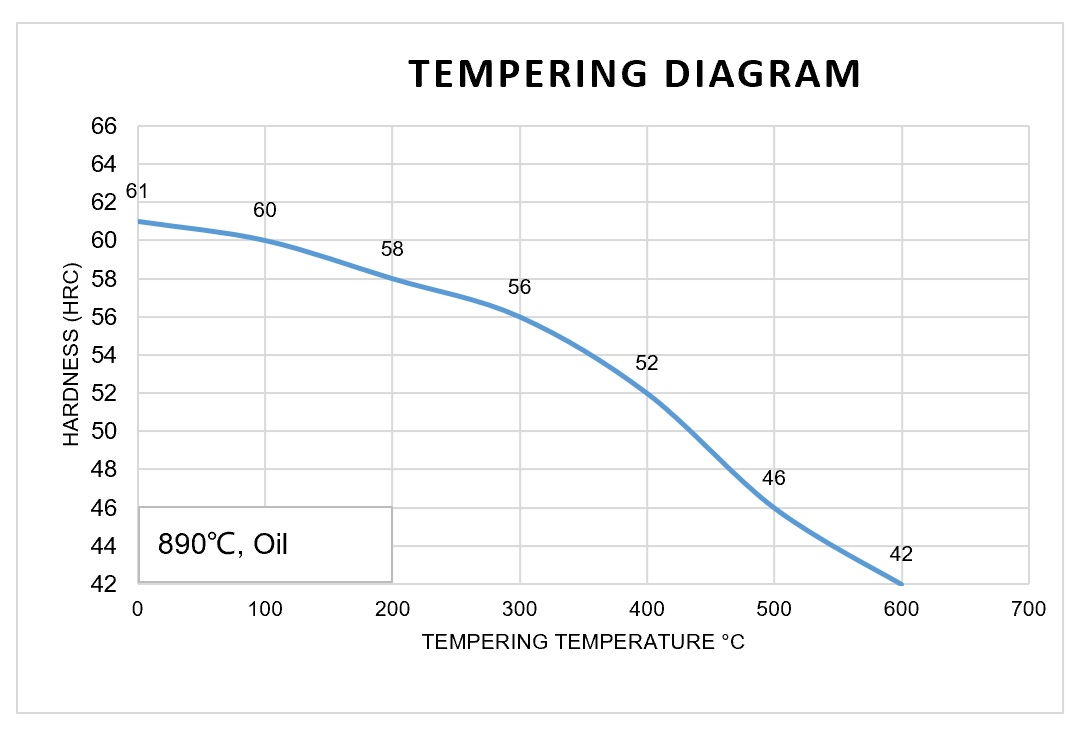

Hardening and tempering	Quenching temperature(°C)	Quenching medium	Frequently-used tempering temperature(°C)
Hardening and tempering	860 - 900	Oil	180 - 300
