Cold work tool steel

ALTA 1.2436 Tool Steel Specification

Steel properties

ALTA 1.2436 steel is a high carbon-chromium tool steel (Cr12% version, ledeburite organization). It offers very high abrasive wear resistance which is much better than 1.2080 tool steel. As a high carbon high chromium tool steel ALTA 1.2436 has good through hardening properties and dimensional stability combined with high resistance to tempering.

Applications

² Various types of cold stamping dies with high wear resistance and long life like cold shearing blades, wire rolling plates

² Suitable for medium load impact stamping dies for punching stainless steel, copper, silicon and aluminum

² Used for stainless steel, silicon steel stamping dies (medium load), and deep-cup stamping dies

Chemical composition

Chemical Composition per %

	C	Si	Mn	P	S	Cr	W		Ni	Cu
Min.	2.00	0.10	0.30			11.0	0.60	/
Max.	2.30	0.40	0.60	0.030	0.030	13.0	0.80	/	0.25	0.30

Basic melting process :

IM/EAF + LF + VD + (ESR)

Hardness :	Max 250 HB (annealed)
Reduction ratio :	5 : 1 minimum or required
Grain size :	≥ 6.0 per ASTM E112
Non-metallic inclusion :	≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route)
Ultrasonic Test	SEP1921, EN 10308, ASTM A388 or agreed methods
Macro-structure	As per ASTM E381
Straightness / flatness	≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black)
Tolerance	Per discussed
Size range (round bars)	Ø 12 - 500 mm
Size range (flats, plates)	8 - 400 mm in thickness max. 1100 mm in width

Heat treatment

Annealing	Temperature(°C)	Hardness
Annealing	800 - 840	max. 250 HB

Hot-forming	Temperature(°C)
	850 - 1000

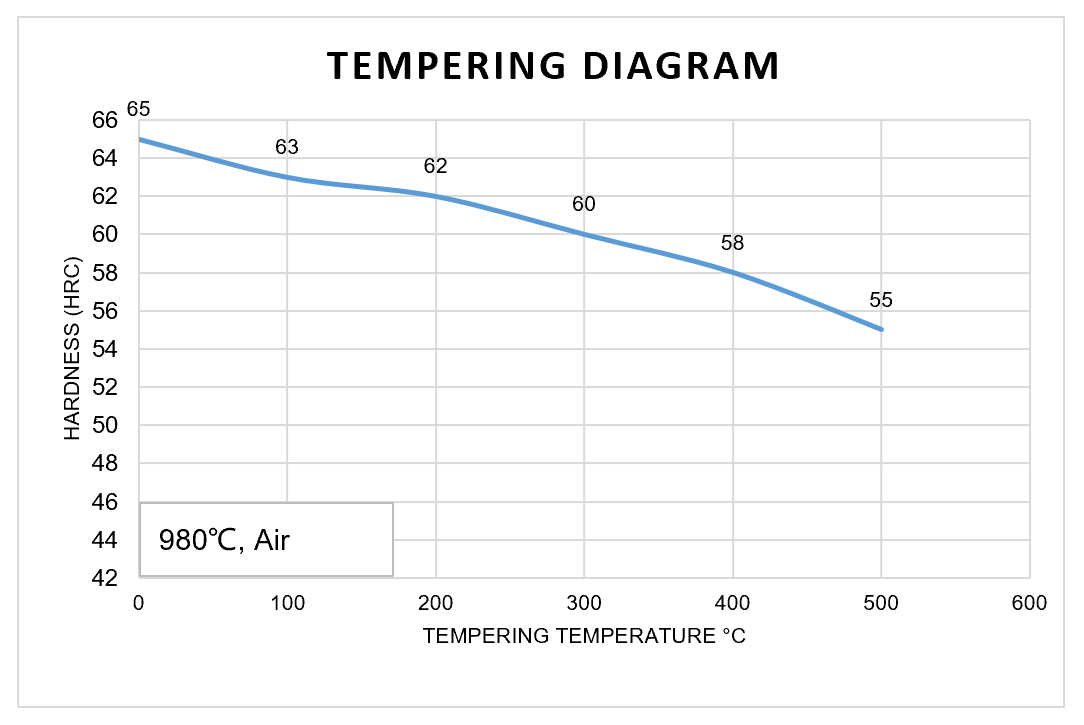

Hardening and tempering	Quenching temperature(°C)	Quenching medium	Frequently-used tempering temperature(°C)
Hardening and tempering	930 - 980	Oil or air-cooled	180 - 250
