Cold work tool steel

ALTA 1.2360 Tool Steel Specification

Steel properties

ALTA 1.2360 tool steel is a high-quality alloy tool steel with good mechanical properties and heat treatment properties, this 1.2360 steel have high toughness and wear resistance to dynamic loading.

Through proper heat treatment and processing technology, 1.2360 tool steel can meet the processing requirements of complex mold parts, maintain sharpness for a long time, and perform well under high load and impact working conditions.

This 1.2360 tool steel can also be supplied in 1.2360 Mod. Condition which is similar to AISI A8 Mod. Tool steel.

Applications

² Manufacture of various cutting tools and dies, such as cold stamping dies, planers, impact blades, punching tools, industrial cutting knives, wood chipping knives, veneer knives

² Manufacture of cold and hot rolling rolls and other metal heating and cooling tools

² Manufacture plastic molds

Chemical composition

Chemical Composition per %

	C	Si	Mn	P	S	Cr	Mo	V	Ni	Cu
Min.	0.45	0.70	0.35			7.30	1.30	1.30
Max.	0.50	0.90	0.45	0.020	0.010	7.80	1.50	1.50	0.25	0.25

Basic melting process :

IM/EAF + LF + VD + (ESR)

Hardness :	Max 240 HB (annealed)
Reduction ratio :	5 : 1 minimum or required
Grain size :	≥ 6.0 per ASTM E112
Non-metallic inclusion :	≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route)
Ultrasonic Test	SEP1921, EN 10308, ASTM A388 or agreed methods
Macro-structure	As per ASTM E381
Straightness / flatness	≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black)
Tolerance	Per discussed
Size range (round bars)	Ø 12 - 500 mm
Size range (flats, plates)	8 - 400 mm in thickness max. 1100 mm in width

Heat treatment

Annealing	Temperature(°C)	Hardness
Annealing	830 - 860	max. 240 HB

Hot-forming	Temperature(°C)
	800 - 1000

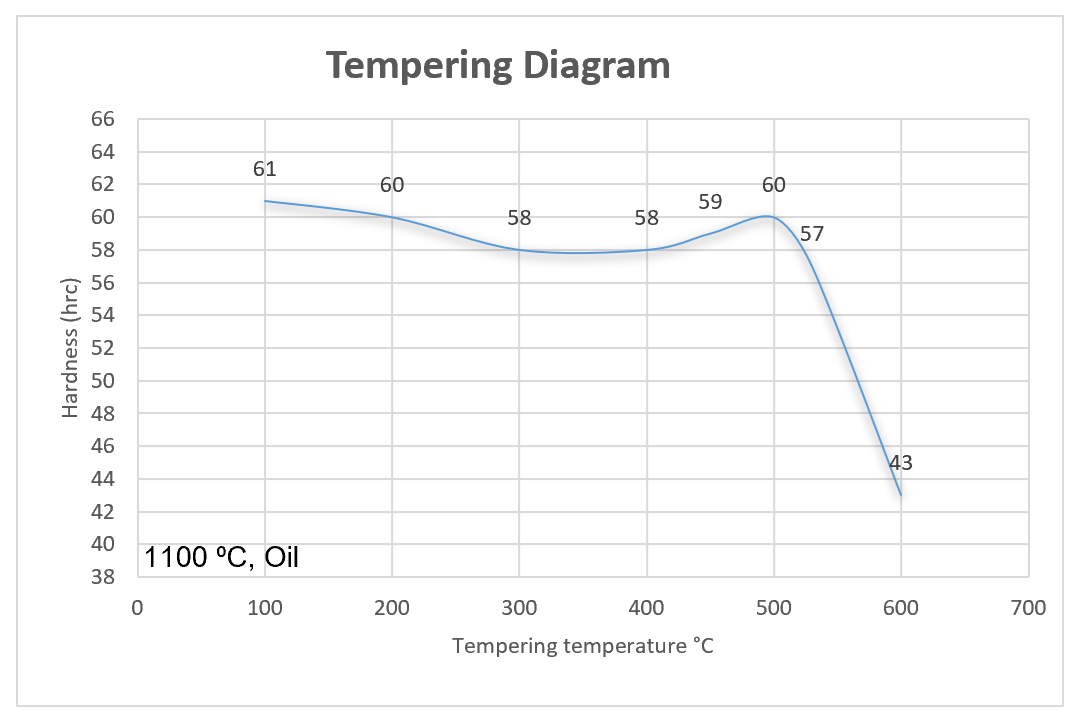

Hardening and tempering	Quenching temperature(°C)	Quenching medium	Frequently-used tempering temperature(°C)
Hardening and tempering	1070 - 1100	Oil	300 - 530
