Cold work tool steel
ALTA 1.2080 Tool Steel Specification
Steel properties
ALTA 1.2080 (Cr12% version) steel is one of the representative steel grades of high carbon and high chromium cold work die steel. Containing extremely high amounts (mass fraction) of C: 1.90%~2.20% and Cr: 11.00%~13.00%, it is a ledeburite steel, so it have a high hardenability, hardening capacity and wear resistance, and small deformation during quenching.
1.2080 was one of the most popularly used cold work tool steels, but has been gradually replaced by other better (Cr12% version) steels such as Cr12MoV, X12MФ, SKD11, D2, 1.2379 etc.
It is mainly used for cold stamping die working parts (punch and concave dies) that require high wear resistance and small impact load, and the concave dies of cold extrusion dies. Due to its obvious advantages and disadvantages, its use areas has been restricted.
Applications
² Commonly used in the manufacture of cold blanking dies, punches, cold shear knives, cold rolls, drill bushings and wire drawing dies which are subjected to low impact loads and have high wear
² Gauges, cam pins, eccentric wheels, etc
Chemical composition
Chemical Composition per %
|
C |
Si |
Mn |
P |
S |
Cr |
Mo |
V |
Ni |
Cu |
Min. |
1.90 |
0.10 |
0.20 |
|
|
11.0 |
/ |
/ |
|
|
Max. |
2.20 |
0.60 |
0.60 |
0.030 |
0.030 |
13.0 |
/ |
/ |
0.25 |
0.30 |
Basic melting process : |
IM/EAF + LF + VD + (ESR) |
Hardness : |
Max 250 HB (annealed) |
Reduction ratio : |
5 : 1 minimum or required |
Grain size : |
≥ 5.0 per ASTM E112 |
Non-metallic inclusion : |
≤ 1.0 (thick), ≤ 1.5 (thin) per ASTM E45 method A (more pure by ESR route) |
Ultrasonic Test |
SEP1921, , EN 10308, ASTM A388 or agreed methods |
Macro-structure |
As per ASTM E381 |
Straightness / flatness |
≤ 1.5 mm / m (machined), ≤ 2.5 mm / m (black) |
Tolerance |
Per discussed |
Size range (round bars) |
Ø 12 - 500 mm |
Size range (flats, plates) |
8 - 400 mm in thickness max. 1100 mm in width |

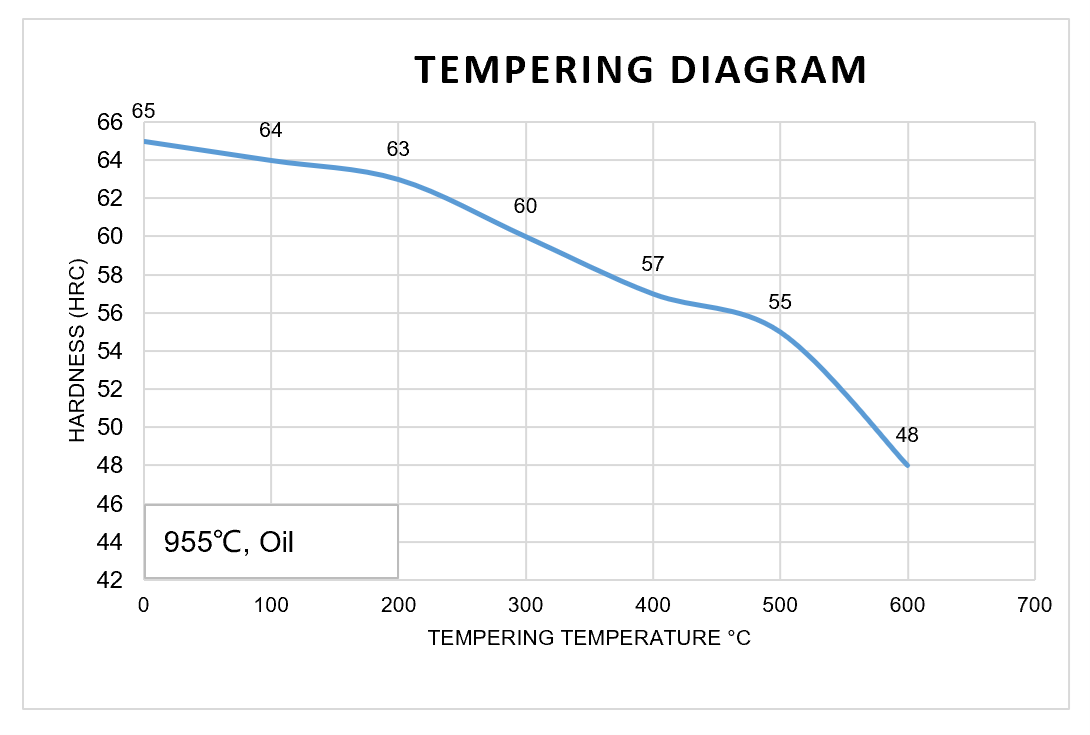

Downloads
-
2024-06-25 Alta 1.2080 SPEC (011 - S6 - T2 ).pdf
끂36 445.86 KB
Features
² High wear resistance abrasive
² Good hardenability
² Good hardening capacity
Inadequacy :
² Easy to produce large carbide segregation (if the smelting quality is poor)
² Poor impact toughness, thermal conductivity and high temperature plasticity
Copyright © 2024 Alta Special Steel all right reserved
News/Blog
- 2024-09-04
- 2024-08-31
- 2024-07-10
- 2024-06-14
